I just ordered an FZ-55 Mk2 in mid July and the specs at the time stated that the computer has USB-C port that support USB Power Delivery. Since I ordered the computer Panasonic announced that the USB-C ports would be removed from the FZ-55 moving forward. Are people familiar with the manufacturing style of Panasonic enough to guess whether or not my unit (which should be delivered mid September) will include the USB-C port?
If yes, does anyone have experience charging the FZ-55 using a USB Power Delivery dock and/or power brick?
Thanks in advance!
FZ-55 Mk2 USB-C
Re: FZ-55 Mk2 USB-C
.
~Rob - Vice President - Rugged Depot~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~
http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater
~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~
http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater
~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
Re: FZ-55 Mk2 USB-C
sorry I didn't open a new thread, I am wondering if the GPU expansion pack should be recognized right away in Windows. or is it anything that needs to be done to see it in device manager? --i can see it in BIOS normally, as the universal bay, with the proper model and serial number. but nothing in device manager
Re: FZ-55 Mk2 USB-C

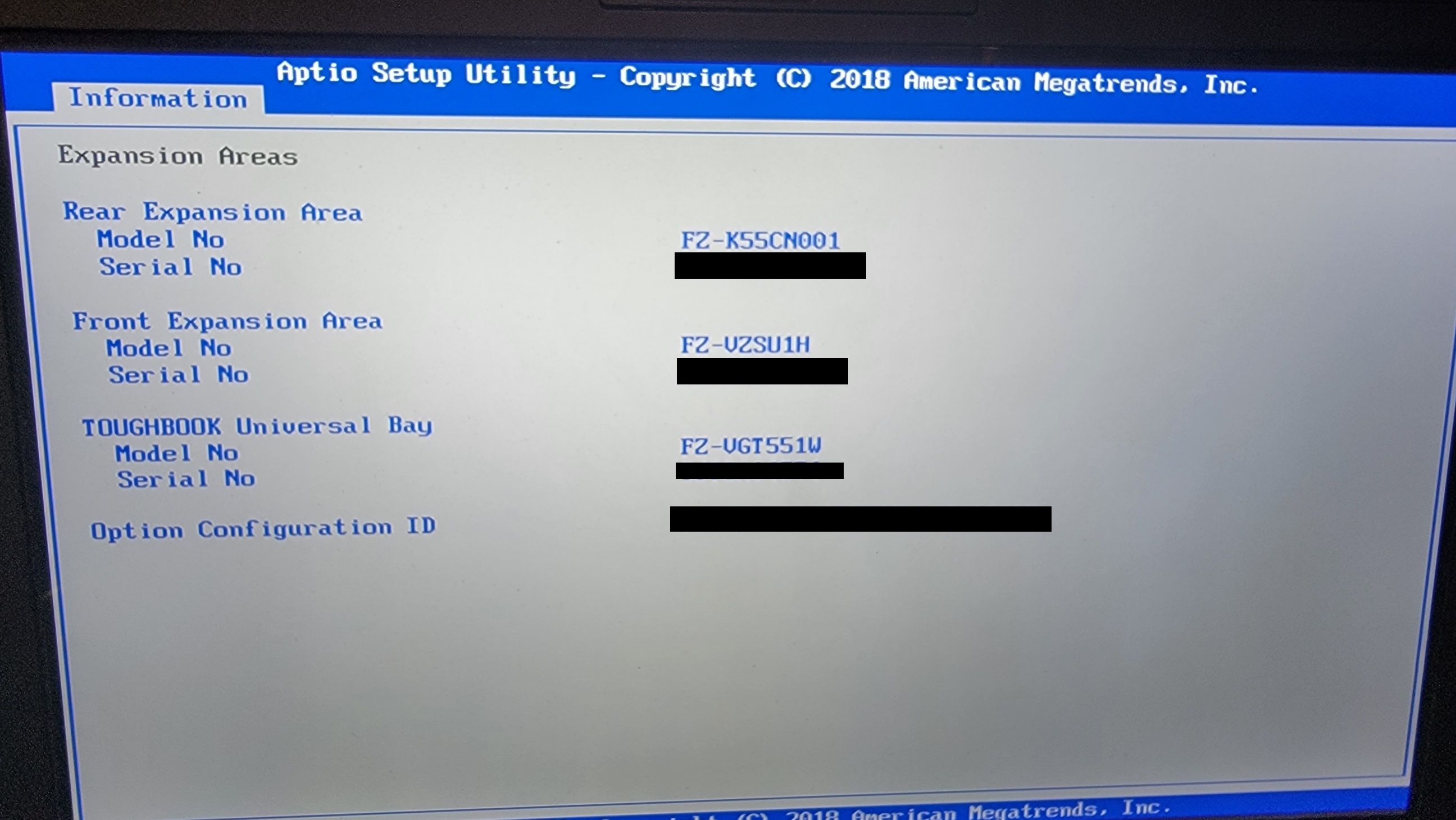

Yes in the MK1, it 100% should show in the BIOS as they have their own serial numbers too! See attached!
There is no official dGPU pack for the MK2 FZ-55 but the Iris GPU that comes with it no matter what rocks even with 1 stick of RAM! It's on-par with the MK1 with the DVD slot GPU. See attached for comparison benchmark tests I've done!

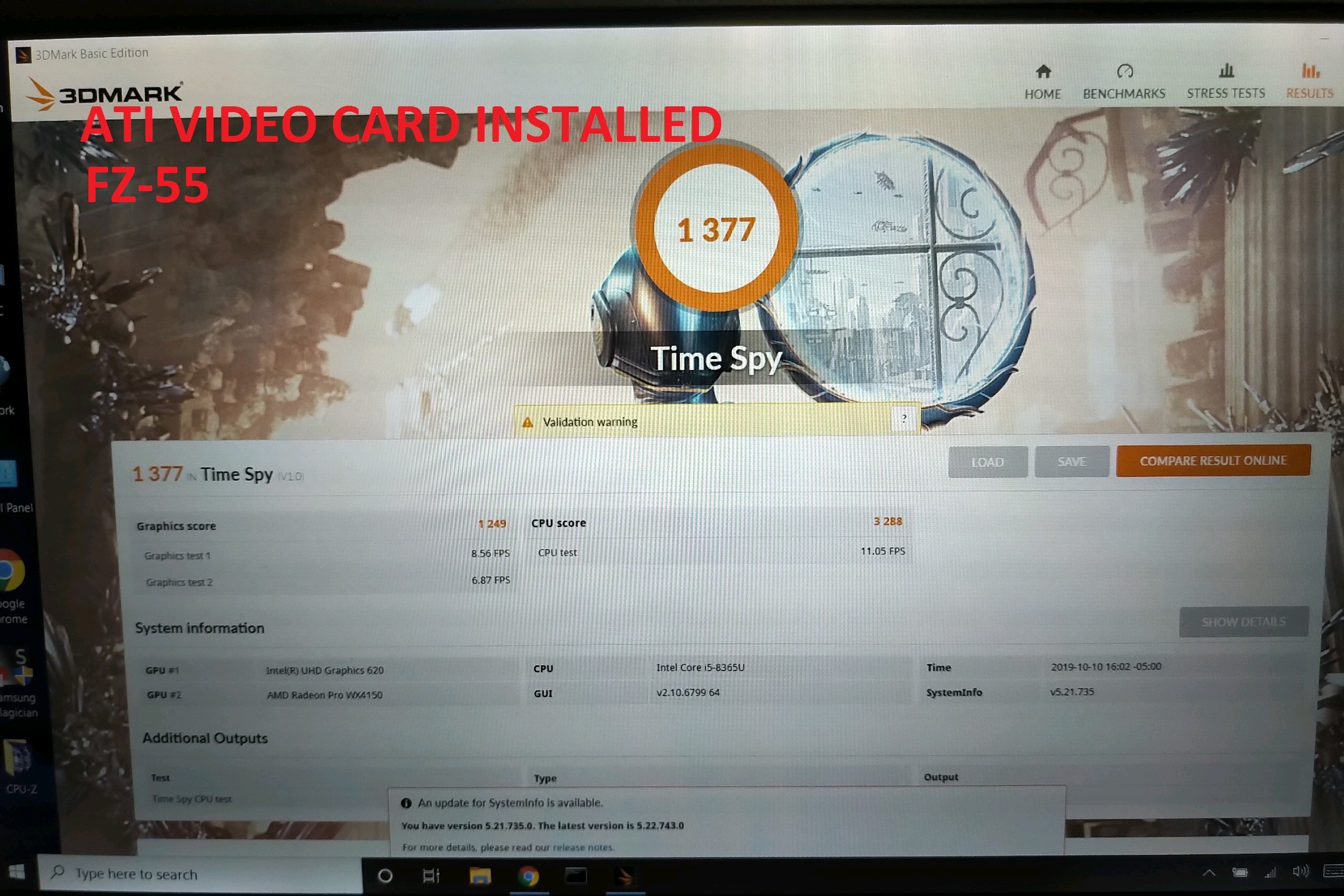

MK1 with ATI DVD slot card - 1377

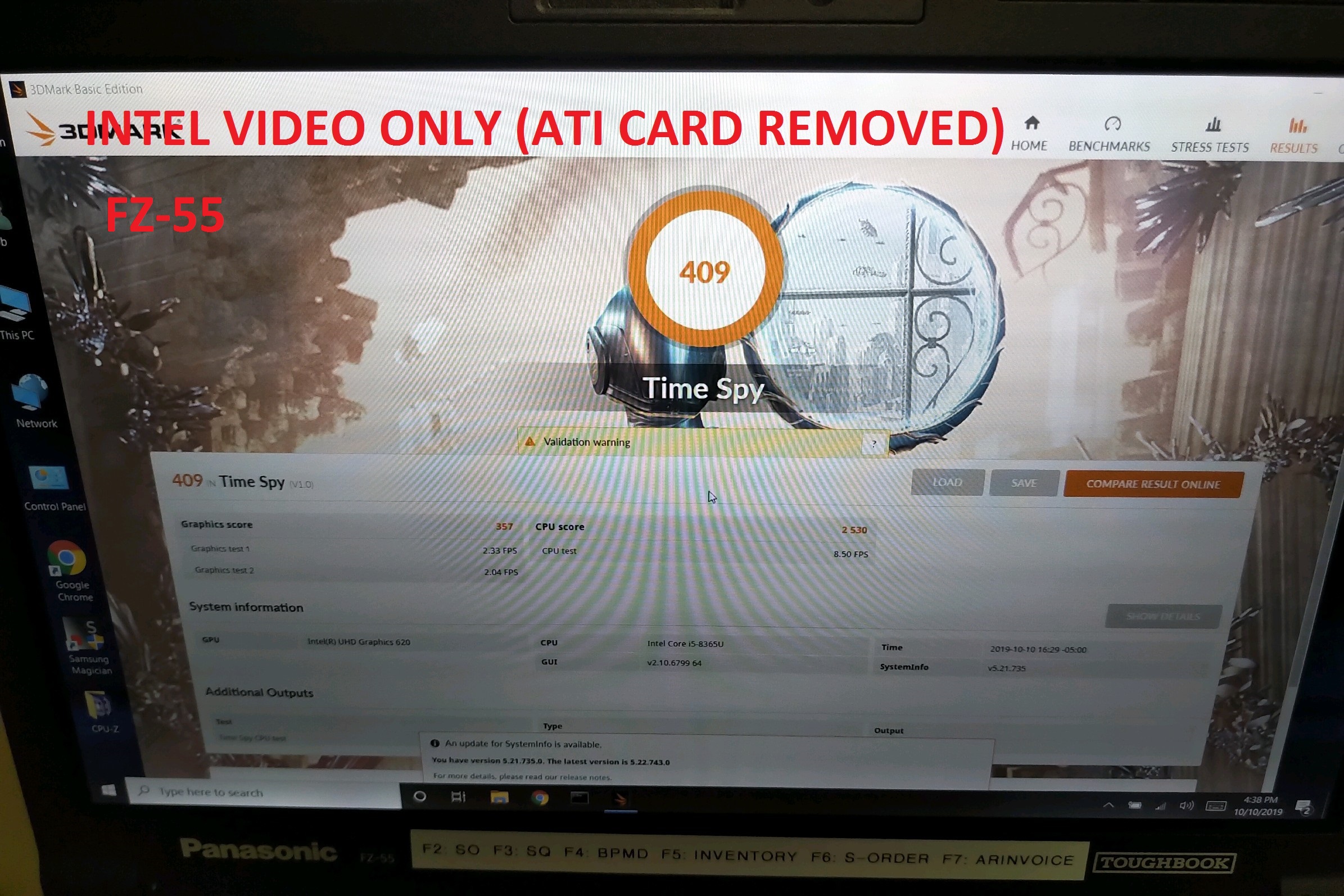

MK1 with Intel shared - 409

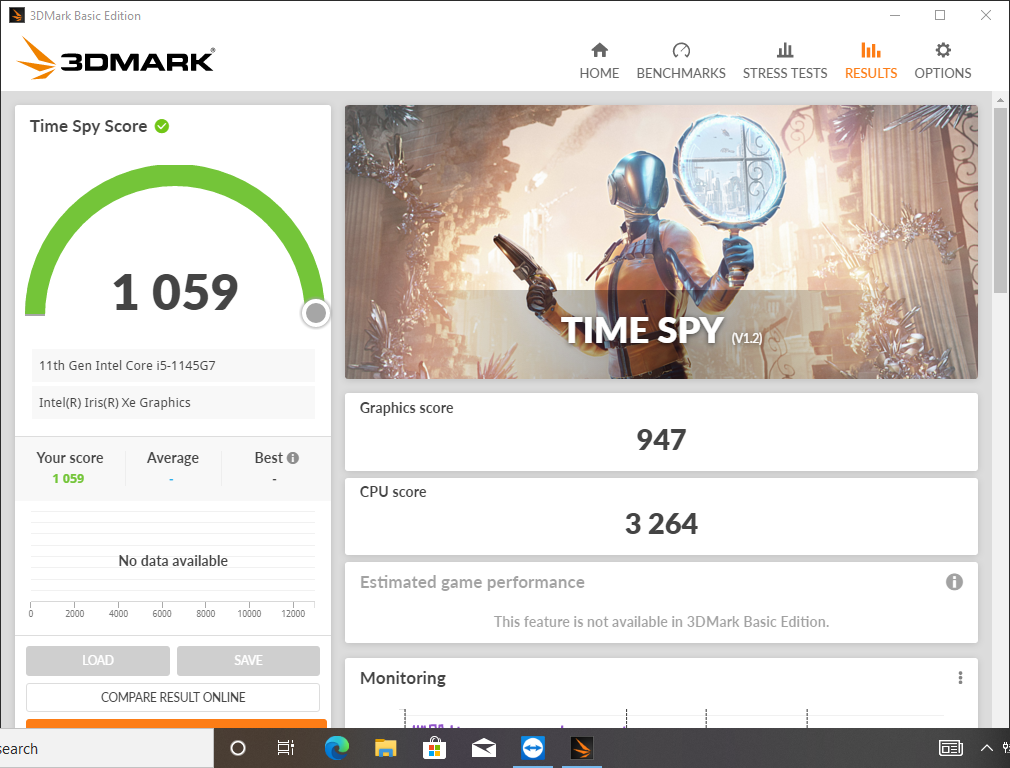

MK2 with Iris GPU - 1059 with 16GB RAM

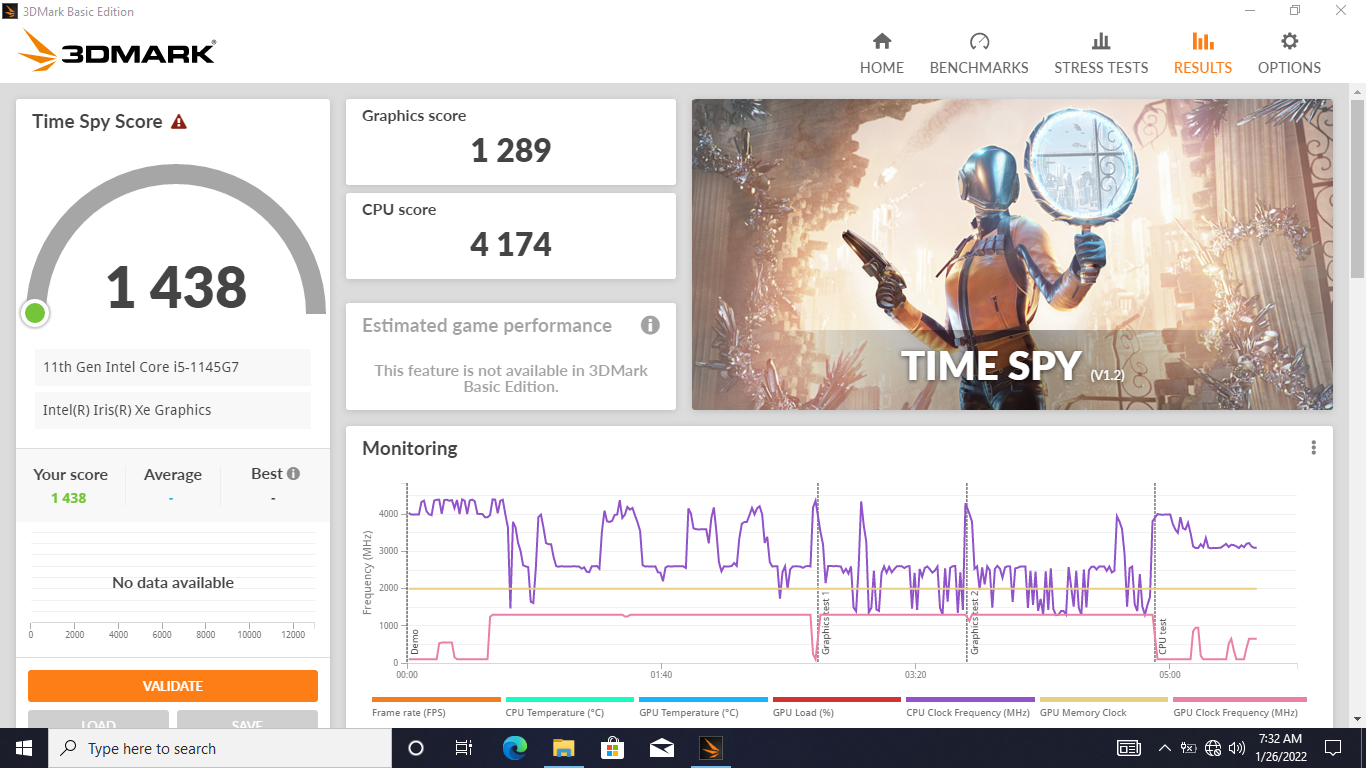

MK2 with Iris GPU - 1438 with 32GB RAM
As you can see, if you get an MK2 with 32GB RAM it's better than the with the MK1 with the dedicated DVD slot GPU.
And no, you don't *NEED* 2 RAM chips to get Intel Iris like Panasonic says but the performance WILL Be better with 2 sticks.
Hope this helps!
There is no official dGPU pack for the MK2 FZ-55 but the Iris GPU that comes with it no matter what rocks even with 1 stick of RAM! It's on-par with the MK1 with the DVD slot GPU. See attached for comparison benchmark tests I've done!
MK1 with ATI DVD slot card - 1377
MK1 with Intel shared - 409
MK2 with Iris GPU - 1059 with 16GB RAM
MK2 with Iris GPU - 1438 with 32GB RAM
As you can see, if you get an MK2 with 32GB RAM it's better than the with the MK1 with the dedicated DVD slot GPU.
And no, you don't *NEED* 2 RAM chips to get Intel Iris like Panasonic says but the performance WILL Be better with 2 sticks.
Hope this helps!
- Attachments
-
- IMG_20191010_1738061.jpg (942.72 KiB) Viewed 5542 times
-
- IMG_20191010_1712347.jpg (909.99 KiB) Viewed 5542 times
-
- image000000.jpg (533.28 KiB) Viewed 5542 times
-
- 3D Mark 1438 Score 32GB RAM.png (561.3 KiB) Viewed 5542 times
-
- 3D Mark 1059 Score 16GB RAM.png (498.2 KiB) Viewed 5542 times
~Rob - Vice President - Rugged Depot~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~
http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater
~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~
http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater
~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
Re: FZ-55 Mk2 USB-C
I agree.
CF-28 MK2,Mk3 / CF-29 Mk3 / CF-30 MK2 / CF-25 Mk1 ATI / CF-19 MK3/Mk3/Mk5 / CF-U1 Mk1,Mk2 / CF-M34 Mk7/Mk3 / CF-17 Mk1 / CF-07
Voodoo Envy M355 / M360 / M515 / M780 / U703 / Voodoo Hexx / Voodoo Idol / Voodoo Rage F1 / Voodoo Rage F1 / Voodoo Rage F1 "signed case" / Voodoo Omen
Alienware M11x R1, Alienware 17 R5
Voodoo Envy M355 / M360 / M515 / M780 / U703 / Voodoo Hexx / Voodoo Idol / Voodoo Rage F1 / Voodoo Rage F1 / Voodoo Rage F1 "signed case" / Voodoo Omen
Alienware M11x R1, Alienware 17 R5
Re: FZ-55 Mk2 USB-C
WOOT WOOT! That means you got the VM SKU.... We also have had some units show up from being on backorder over 6 months!
Glad it's working
Glad it's working
~Rob - Vice President - Rugged Depot~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~
http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater
~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
~Cell: (630)/300-8877~
~Owner - Toughbooktalk~
~Fully rugged Toughbook user since April 18th 2005~
~FZ-40ACAAHKM - Primary Toughbook / Workstation as of 7/29/22
~Win10 Pro (Win11 DG), Intel Core i5-1145G7 (up to 4.4GHz), vPro, 14.0" FHD Gloved Multi Touch, 16GB, 1TB Samsung SSD, Intel Wi-Fi 6, Bluetooth, 4G EM7690, GPS, Quad Pass (BIOS Selectable), Mic and Infrared 5MP Webcam, Standard Battery, TPM 2.0, Emissive Backlit Keyboard, Dual Batteries, USB A + HDMI + Serial X-PAK, Shoulder Strap, Flat~
~AT&T Business 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~
http://www.toughbooktalk.com
http://downloads.toughbooktalk.com/
http://www.rugged575.com - 300' UHF GMRS Radio Repeater
http://www.crete600.com - 310' UHF Linked GMRS Radio Repeater
~Emergency preparedness starts with reliable communication systems above all. Pretend the internet and cell phones didn’t exist, how will you communicate? If you’re interested in learning more, ask me!~
Re: FZ-55 Mk2 USB-C
Is there any recent Model # breakdown for most recent Toughbook models, like 7th gen and up let's say?
