Since Mint 17 MATE does not run the calibrator as I am used to I came up with this.
You need:
Fairly recent Linux version.
A text editor.
So here we go. ##Anything after the # is just notes. The way I did it before I had a text editor and two terminals open at the same time.

Code:
sudo mkdir /etc/X11/xorg.conf.d/ #creates a directory...only done once per machine


Code:
sudo apt-get install xinput-calibrator


Code:
xinput_calibrator #minus sign became an underscore

Copy and paste all of this to nano.....of course your numbers are different
Quote:
Section "InputClass"
Identifier "calibration"
MatchProduct "Fujitsu Component USB Touch Panel"
Option "Calibration" "303 4000 258 3917"
Option "SwapAxes" "0"
EndSection

Code:
sudo nano /etc/X11/xorg.conf.d/99-calibration.conf

[Ctrl][x]
[[Enter]

notes: Calibration,calibrator and calibrate are all seen here.
Watch the - sign and the _ .........they move. X11 is a capital letter.

Let me know.

Thanks,

J'd

_________________
Fair for you/ Fair for me.
I chose to NOT be organized.

-------------------------------------------------------------------[/color]
http://toughbooktalk.com/
http://forum.notebookreview.com/panasonic/


Top

PostPosted: Thu Jun 12, 2014 5:44 am
Offline

Joined: Wed Nov 16, 2011 8:01 pm
Posts: 501
Location: New England
Looks good Jeff. I've NOT used an editor before, but will try this out on a spare CF-30 and report back.

_________________
CF-53 Mint LMDE3
CF-30 MK2 SSD LMDE2 Betsy, MK2 Navigatrix, Fundraiser for TbT
CF-52 GUN SSD LMDE2 MX18.2
(NICE) Thanks Sadlmkr
CF-M34 MicroWattR8 Thanks Sadlmkr
CF-M33 MicroWattR8 Thanks Springfield
CF-29 MX-16 (https://mxlinux.org/) Thanks Morgan
CF-28 MK3 MX-14.3 & MicroWattR8


Top

PostPosted: Thu Jun 12, 2014 5:03 pm
Offline
User avatar

Joined: Thu Oct 14, 2010 1:13 pm
Posts: 2254
Location: TDR-HQ California

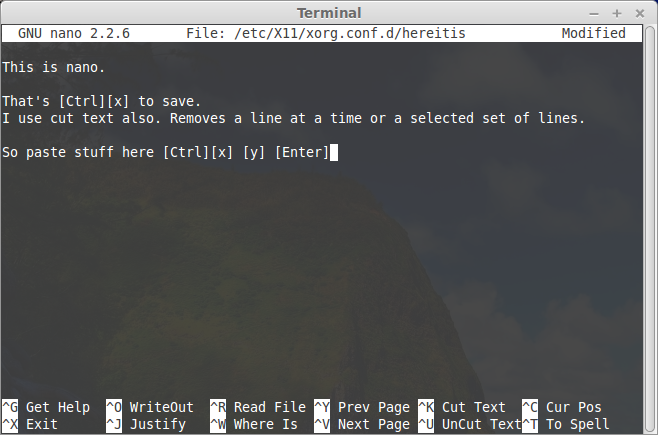

I was used to gedit but it doesn't come "stock" in all distros. So I tried nano (editor) and it works in the same terminal.....hence the one terminal hack. :D

BTW gedit is found in package manager or
Code:
sudo apt-get install gedit
.

BTW I was wrong :pat: . [Ctrl][k] kills single lines.


Attachments:
nano.png [ 199.01 KiB | Viewed 6080 times ]

_________________
Fair for you/ Fair for me.
I chose to NOT be organized.

-------------------------------------------------------------------[/color]
http://toughbooktalk.com/
http://forum.notebookreview.com/panasonic/
Top

PostPosted: Thu Jun 12, 2014 5:12 pm
Offline
User avatar

Joined: Thu Oct 14, 2010 1:13 pm
Posts: 2254
Location: TDR-HQ California

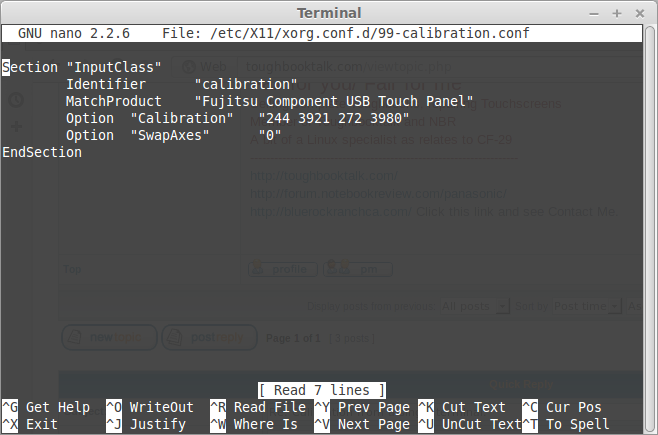

Here is what 99-calibration.conf looks like in nano.

If it does not look exactly like this, start over. :D The calibration numbers will be slightly different.

Cleve, If you run this on that wonky CF-30 let me know what happens. Don't you have a hdd with Mint on it?

Thanks,

Jeff...double poster...


Attachments:
calib.png [ 68.41 KiB | Viewed 6080 times ]

_________________
Fair for you/ Fair for me.
I chose to NOT be organized.

-------------------------------------------------------------------[/color]
http://toughbooktalk.com/
http://forum.notebookreview.com/panasonic/
Top

PostPosted: Tue Aug 19, 2014 6:56 am
Offline

Joined: Wed Nov 16, 2011 8:01 pm
Posts: 501
Location: New England
This all makes sense after yesterday's telephone consultation.
:salute: Yes, the screenshots really DO help

_________________
CF-53 Mint LMDE3
CF-30 MK2 SSD LMDE2 Betsy, MK2 Navigatrix, Fundraiser for TbT
CF-52 GUN SSD LMDE2 MX18.2
(NICE) Thanks Sadlmkr
CF-M34 MicroWattR8 Thanks Sadlmkr
CF-M33 MicroWattR8 Thanks Springfield
CF-29 MX-16 (https://mxlinux.org/) Thanks Morgan
CF-28 MK3 MX-14.3 & MicroWattR8


Top

PostPosted: Tue Aug 19, 2014 11:59 am
Offline
User avatar

Joined: Sat Jun 07, 2014 7:39 am
Posts: 681
Location: Canada
As a side note, I added these on my CF-19 touchscreen:
Code:
Option "EmulateThirdButton"  "1"
Option "EmulateThirdButtonMoveThreshold" "50"


First line allows you to emulate a right-click by just keeping your pen in the same spot for one second. Otherwise it registers as a normal left-click tap or drag. The second line is to allow a few pixels movement while your pen is down so that it doesn't reset to normal left-click in case your hand isn't that of a surgeon and completely steady, or the touchscreen has a bit of fuzziness.

Very useful for me since I rely a lot on right clicking and context menus.

_________________
CF-19 MK2 TOUCHSCREEN || CF-19 MK2 DIGITIZER || CF-30 MK3 "Jeff Edition" || CF-19 MK4


Top

PostPosted: Tue Aug 19, 2014 12:09 pm
Offline
User avatar

Joined: Fri Feb 22, 2013 3:10 pm
Posts: 861
Location: Edmonton, Alberta
Nice. The right-click is what I miss in Linux.
Do the 2 lines go into the 99-calibration.conf file under the calibration numbers, or does it go into a file of their own?
Thank you.

_________________
CF-D1DW2,CF-U1AQC,CF-29LTQ,CF-31SBM,CF-52youngGUN,

Life's Journey is not to arrive safely at the grave in a well preserved body, but rather to skid in sideways totally worn-out shouting 'Woo Hoo! What a ride!

Motorsports - the only real sport. If it doesn't have a motor, it is just a game.

There is always something waiting at the end of the road, if you are not willing to see what it is, you probably shouldn't be out there in the first place.


Top

PostPosted: Tue Aug 19, 2014 1:26 pm
Offline
User avatar

Joined: Sat Jun 07, 2014 7:39 am
Posts: 681
Location: Canada
Toss them in the same file under your other Option lines.

_________________
CF-19 MK2 TOUCHSCREEN || CF-19 MK2 DIGITIZER || CF-30 MK3 "Jeff Edition" || CF-19 MK4


Top

PostPosted: Tue Aug 19, 2014 1:38 pm
Offline
User avatar

Joined: Thu Oct 14, 2010 1:13 pm
Posts: 2254
Location: TDR-HQ California
Good post kode. :)
Put it before End Section Morgan.

Cleve, Navigatris is fine. The issue is Debian..."run from a terminal" from the documentation. IOW the gui is non-functional in Debian as I understand it. More tomorrow. Training day.

Once terminal is your friend you will be fine.

_________________
Fair for you/ Fair for me.
I chose to NOT be organized.

-------------------------------------------------------------------[/color]
http://toughbooktalk.com/
http://forum.notebookreview.com/panasonic/


Top

PostPosted: Tue Aug 19, 2014 2:07 pm
Offline
User avatar

Joined: Fri Feb 22, 2013 3:10 pm
Posts: 861
Location: Edmonton, Alberta
Sadlmkr wrote:
Put it before End Section Morgan.


Thanks Jeff.

It would have been a better post if that info was included in kodes post.
It seems that most of the guys that consider themselves, or come across as, linux gurus never bother to give proper details. They assume everyone reading their post are gurus as well. It has been one of the things that keeps me from running nothing but Linux.
Thanks Jeff for being one of the few Linux gurus that takes the time to fully explain their posts about doing things in Linux. /end rant.
