PostPosted: Fri Apr 08, 2016 8:23 am
Offline
User avatar

Joined: Sun Nov 29, 2009 1:52 pm
Posts: 532
Location: Hotlanta, GA, USA!
More new Information added.

_________________
I am what I am, somebody has to be.
Call me for free from anywhere in the USA from my homepage! http://www.azrial.com/
CF-31JEGAX1M Mk2 Intel i5-2520M 2.50 GHz, Win7x64 & Ubuntu x64 14.04LTS Dual Boot, 16GB RAM, Samsung 250GB SSD, 2x64GB USB FD, 64GB SDHC, GOBI 4000, BUGPS, IBM AC/DC Supply #22P9003


Top

PostPosted: Sun Apr 10, 2016 11:30 am
Offline
User avatar

Joined: Fri Jan 18, 2013 11:35 am
Posts: 2971
Bill,

read this thread

http://forum.notebookreview.com/threads ... rt.647807/

_________________
Life will beat you into submission.


Top

PostPosted: Sun Apr 10, 2016 7:43 pm
Offline
User avatar

Joined: Thu Oct 14, 2010 1:13 pm
Posts: 2254
Location: TDR-HQ California
The results of five tested antennas. MC7700 in CF-53JULA21M. Linux Mint 17.2? .wine and Winfast Navigator.

Leads were attached to GPS connector (except #1)on 7700 card. Then antenna was taped to the lid.

1. With nothing attached to GPS connector........works kinda blah. It does work. This means with AUX and MAIN connected only.
2. Taoglas passive.............needs more testing.
3. CF-30 active............mediocre and slow.....ground plane needed?
4. DFUP1892ZA .......best of the lot.
5. DFUP1865ZA .......not to shabby.

I consider this pretty good performance (4 and 5). Definitely usable as a back up to embedded GPS.

I have one more to try but lost this post once already. There are comments near the photos/screenshots.

FWIW a bit OT but related to the thread title.

Here ya go.


Attachments:
File comment: DFUP1865ZA STUFFED IN THE PLASTIC CASE.
gpscase.JPG [ 5.17 KiB | Viewed 2598 times ]
File comment: This was nearly as good as 1892. Shawn sent me the case.
1865ZA.jpg [ 5.32 KiB | Viewed 2598 times ]

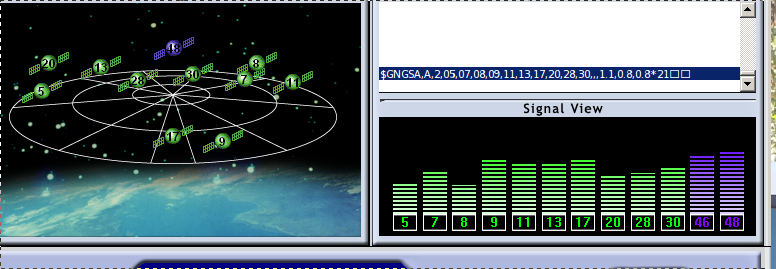

File comment: MC7700 + DFUP1892ZA
INSIDE AFTER IT FOUND ITSELF.

1892inside.png [ 97.78 KiB | Viewed 2598 times ]

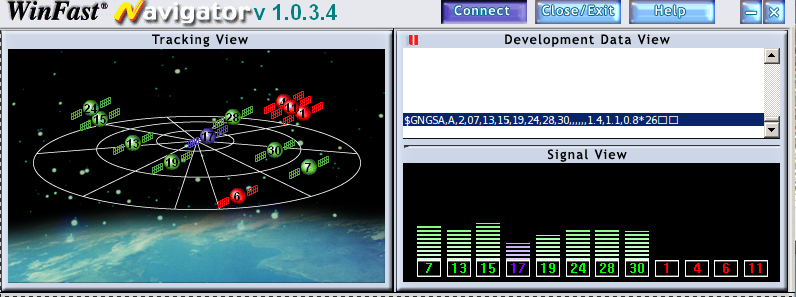

File comment: MC7700 + DFUP1892ZA
gpsant1.png [ 78.91 KiB | Viewed 2598 times ]

_________________
Fair for you/ Fair for me.
I chose to NOT be organized.

-------------------------------------------------------------------[/color]
http://toughbooktalk.com/
http://forum.notebookreview.com/panasonic/
Top

PostPosted: Sun Apr 10, 2016 11:52 pm
Offline
User avatar

Joined: Fri Jan 18, 2013 11:35 am
Posts: 2971
Not bad.
Not bad at all.

_________________
Life will beat you into submission.


Top

PostPosted: Mon Apr 11, 2016 12:44 am
Offline
User avatar

Joined: Sun Nov 29, 2009 1:52 pm
Posts: 532
Location: Hotlanta, GA, USA!
Sadlmkr wrote:
The results of five tested antennas. MC7700 in CF-53JULA21M. Linux Mint 17.2? .wine and Winfast Navigator......FWIW a bit OT but related to the thread title. Here ya go.


Well it looks to me like the GPS is not as big a non-performer as we had been lead to believe! Which is why I am thinking of running that lead to a pass-through port on the back of the unit for use with large active antenna mounted on the outside of the vehicle.

[
Shawn wrote:

Thanks, I did and it has me thinking of two things:
1. Only install the drivers and not the manager, etc.
2. Why don't we pool our money and get a "Mr. Bios" custom BIOS written for these computers? They used to be pretty cheap... but I have not looked in years.

_________________
I am what I am, somebody has to be.
Call me for free from anywhere in the USA from my homepage! http://www.azrial.com/
CF-31JEGAX1M Mk2 Intel i5-2520M 2.50 GHz, Win7x64 & Ubuntu x64 14.04LTS Dual Boot, 16GB RAM, Samsung 250GB SSD, 2x64GB USB FD, 64GB SDHC, GOBI 4000, BUGPS, IBM AC/DC Supply #22P9003


Top

PostPosted: Mon Apr 11, 2016 2:49 am
Offline
User avatar

Joined: Sun Nov 29, 2009 1:52 pm
Posts: 532
Location: Hotlanta, GA, USA!
OK, I installed it and I could not get the AT&T oriented MC7700 to recognize my T-Mo SIM, with just the drivers installed. Perhaps I am just not in the footprint out here by the lake, I am now at my rural home. I have not installed the rest of the software, based on the site that Shawn referred me to. I will see how it works in Metro Atlanta tomorrow. I have considered that the ini file may be the place to activate some of the bands that I need...

What did work like gang busters is the built in GPS! I got seven birds from the inside my tin roofed late house, with NO ANTENNA ATTACHED! I find this hard to believe!

Well time to crash! Thanks for any and all help!

_________________
I am what I am, somebody has to be.
Call me for free from anywhere in the USA from my homepage! http://www.azrial.com/
CF-31JEGAX1M Mk2 Intel i5-2520M 2.50 GHz, Win7x64 & Ubuntu x64 14.04LTS Dual Boot, 16GB RAM, Samsung 250GB SSD, 2x64GB USB FD, 64GB SDHC, GOBI 4000, BUGPS, IBM AC/DC Supply #22P9003


Top

PostPosted: Mon Apr 11, 2016 10:26 pm
Offline
User avatar

Joined: Sun Nov 29, 2009 1:52 pm
Posts: 532
Location: Hotlanta, GA, USA!
Well let's see. When I took my CF-31 into the city today, there was T-Mobile in my list of available wireless networks. The only thing that I have installed is the drivers for the MC7700, I really don't know why the "Watcher" software is needed for anyway. As this card is optimize for AT&T I doubt that I will get much faster then EVDO speeds, I did not have my Name, Password, an other info with me. However, I am pretty sure that it will connect with this information.

To get LTE speeds, I could issue one of the AT commands (Thanks Shawn) to it to open the T-Mo LTE Band, BUT, that requires the "OEMPassword." Anyone know it for Sierra Wireless????

But as I see it, I have a total of $32 USD, with T-Mo SIM in an installed Gobi 4000 card that will give me not only 250MB of FREE wireless data for life, plus the ability to buy more, as needed, for less then $10/GB, with a phone call, or email and my credit card! Plus I still can try the GO Phone SIM, which may work faster/better/cheaper. Oh, and a backup GPS (BUGPS for AR guys :P )

Over all, I'm happy! :cheers:

_________________
I am what I am, somebody has to be.
Call me for free from anywhere in the USA from my homepage! http://www.azrial.com/
CF-31JEGAX1M Mk2 Intel i5-2520M 2.50 GHz, Win7x64 & Ubuntu x64 14.04LTS Dual Boot, 16GB RAM, Samsung 250GB SSD, 2x64GB USB FD, 64GB SDHC, GOBI 4000, BUGPS, IBM AC/DC Supply #22P9003


Last edited by Azrial on Mon Apr 11, 2016 11:09 pm, edited 1 time in total.

Top

PostPosted: Mon Apr 11, 2016 10:54 pm
Offline
User avatar

Joined: Thu Oct 14, 2010 1:13 pm
Posts: 2254
Location: TDR-HQ California
:boing: Good show Bill.

Antenna and d-rings go in the Mail tomorrow. No screws for d-rings .....do you have or should I look? :boing:

_________________
Fair for you/ Fair for me.
I chose to NOT be organized.

-------------------------------------------------------------------[/color]
http://toughbooktalk.com/
http://forum.notebookreview.com/panasonic/


Top

PostPosted: Mon Apr 11, 2016 11:04 pm
Offline
User avatar

Joined: Sun Nov 29, 2009 1:52 pm
Posts: 532
Location: Hotlanta, GA, USA!
Sadlmkr wrote:
:boing: Good show Bill.

Antenna and d-rings go in the Mail tomorrow. No screws for d-rings .....do you have or should I look? :boing:


If they are already in the Toughbook, I have them, if not, tell me the size and I will find them! If you don't know the size I will figure it out!

It has been a good night! :D

_________________
I am what I am, somebody has to be.
Call me for free from anywhere in the USA from my homepage! http://www.azrial.com/
CF-31JEGAX1M Mk2 Intel i5-2520M 2.50 GHz, Win7x64 & Ubuntu x64 14.04LTS Dual Boot, 16GB RAM, Samsung 250GB SSD, 2x64GB USB FD, 64GB SDHC, GOBI 4000, BUGPS, IBM AC/DC Supply #22P9003


Top

PostPosted: Mon Apr 11, 2016 11:12 pm
Offline
User avatar

Joined: Thu Oct 14, 2010 1:13 pm
Posts: 2254
Location: TDR-HQ California
Your turn. They should be the same as the one holding the stylus tether. Check and see O.K. , I'm finishing dinner.
Basically it sizes and that usually means metrics and I don't DO metrics? Different century. :) I'll look tomorrow.

Jeff

_________________
Fair for you/ Fair for me.
I chose to NOT be organized.

-------------------------------------------------------------------[/color]
http://toughbooktalk.com/
http://forum.notebookreview.com/panasonic/


Top
