Hi,

I'll be providing wireless internet for a smallish open air festival this summer.
Approx. 1500 attendees on an organic farm, just outside of Munich.
I'm doing it just for fun/learning this time ... maybe for profit at some larger festivals next year.
How often does one get to play with large-ish wireless networks, without having any real pressure/responsibility? ;-)

I'm posting this as it involves two tough things, a cf19 mk3 and a pelican 1560.

The cf19 will be used as Performance Enhancing Proxy (PEP) with Polipo+500gb ssd for caching
and ssh tunnel to a remote server for bandwith compression.
This should help to push something like 50 mbits through a tiny 16mbits landline.
I reckon this won't handle more than a few youtube streams without buffering like hell,
but should be plenty for 500+ smartphones browsing the web and doing email.

I'll be using three Ruckus R500 for the three main areas (farm house + big tent + cow barn) with 5ghz backhaul mesh.
Two Ubiquity UAPs will be used for additional low-density backstage coverage,
while two Ubiquity Edgerouters will hopefully take care of all fixed-lan switching, routing and (basic) firewalling needs.

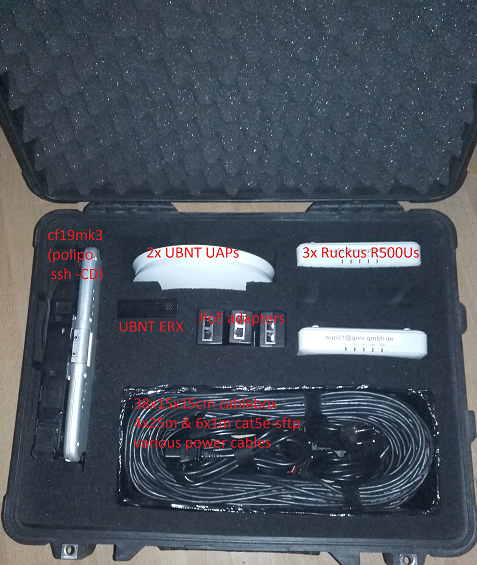

Anyways, I've assembled the case this week and want to share these observations:
1) a cf19 fits tightly into a pelican 1560, so this would be a great case for storing 8-10 cf19s.
2) Plasti Dip is excellent stuff for hardening & hiding pelican foam cubes, so that they won't tear easily.
3) A crazy amount of ethernet/power cables (~120m/~400ft) can fit into a tiny(38x15x15cm) spot ;-)

BR,
Karl Klammer


Attachments:
wifi-1560.png [ 588.44 KiB | Viewed 4431 times ]
Top

PostPosted: Mon Feb 15, 2016 10:27 am
Offline
Toughbooktalk Founder
User avatar

Joined: Mon Mar 16, 2009 8:23 pm
Posts: 3608
Network guy slobbering over here....... :D :D

GORGEOUS!

_________________
~Rob - Rugged Depot ~ Cell: (630)/300-8877~

~Fully rugged Toughbook user since April 18th 2005~
~New 3/16/18 - CF-54F0001KM Win10, Intel Core i5 6300U 2.4GHz, 240GB SSD, 12GB, Verizon 4G LTE, Intel 8260 WiFi a/b/g/n/ac, Bluetooth~
~For the wife (New 1/25/18): CF-54F0962KM/i5/128GB SSD/8GB/Win 10~
~Others: CF-52MLBBQ2M (Home Workstation)
~New 11/13/14 Donations thanks to everyone at Toughbooktalk: IBM xSeries 3650/2 x Xeon X5560 2.8GHz/16GB RAM/8 x 600GB 10KRPM SAS RAID 5/3.71TB Space/Win 2008 R2/3000VA + 1250VA Battery Backup~
~AT&T 1GB Fiber 1GB/1GB business static line~
~Gamber & Johnson Platinum Partner~

http://www.toughbooktalk.com
http://www.toughbooktalk.com/public_downloads
http://www.toughwiki.com


Top

PostPosted: Mon Feb 15, 2016 11:42 am
Offline
User avatar

Joined: Tue Oct 13, 2015 3:19 am
Posts: 193
Location: Old Europe
Glad you like it, Rob.

The Ubiquity stuff performs reasonably well at about 20% of the marketing specs IF you don't turn on to many features.
UAP and UAP-LR specs say 100 users, but performance goes down exponentially after about 20 active users per AP. (no airtime fairness)
EdgeRouter X can do ~950mbit switching, but only about 200mbit routing.
Ubiquities performance is "fair enough" considering the low pricepoint and root access.
Known technology, known limitations, will just work, not really interesting...


I'm really looking forward to giving that Ruckus stuff a serious testride.
I'm currently hoping(=designing) for 40% real world performance peaks, e.g. up to 200 instead of 500 active users per AP.
I will temporarily disable one or two live-APs during the event, if that is what it takes to get my benchmarking data ;-)

Some other Ruckus models are used by mobile carriers like Telefonica and Vodafone for Wifi-Offloading in crowded areas, e.g. shopping malls.
London Olympics also relied on them.

Here is a 45min semi-technical video on Ruckus antenna design:
https://www.youtube.com/watch?v=kcIkgyRGFQE

Some more semi-technical marketing pics follow...


Attachments:

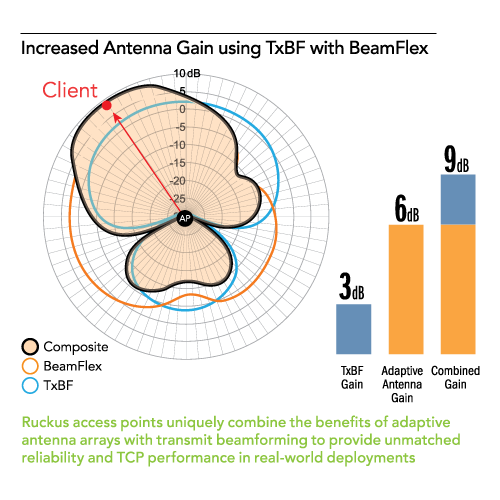

ruckus_beamflex_graphic.png [ 152.66 KiB | Viewed 4405 times ]

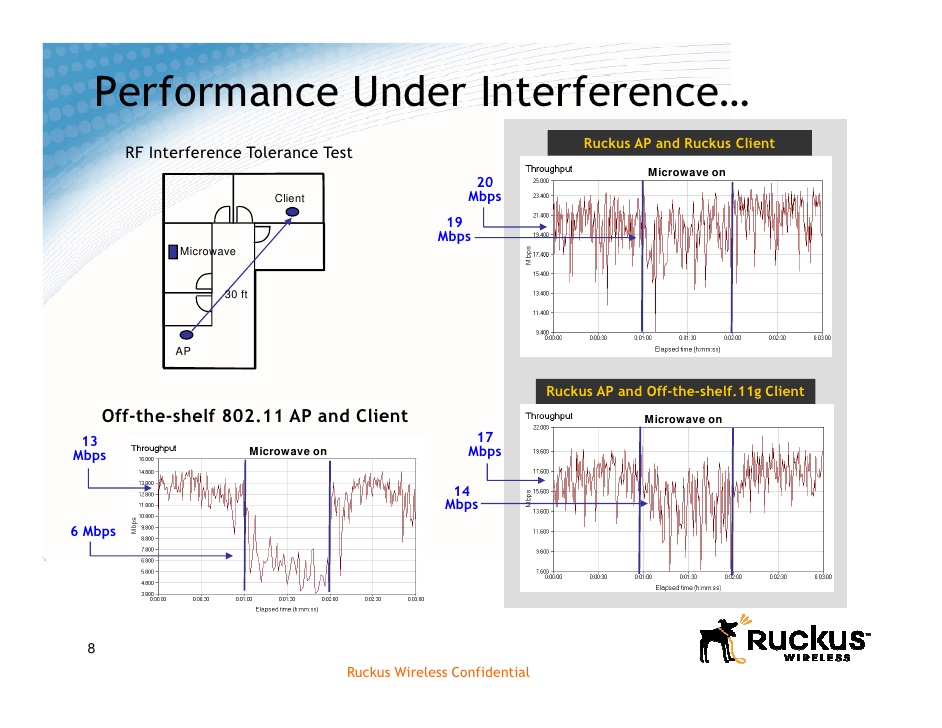

interference.jpg [ 143.79 KiB | Viewed 4405 times ]

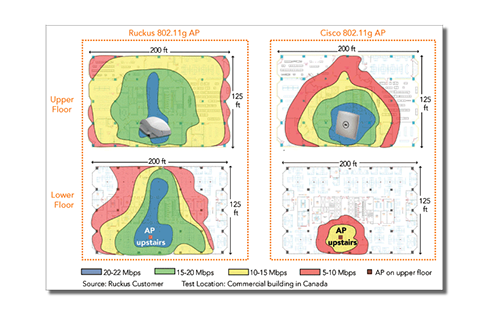

diagram_increased_antenna_gain_7982.png [ 74.53 KiB | Viewed 4405 times ]

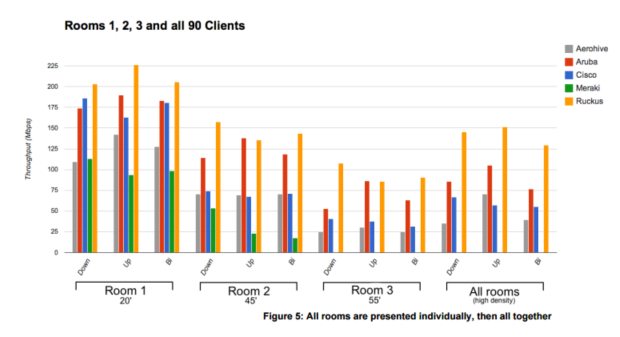

ArubaVsRuckusResults.png [ 40.84 KiB | Viewed 4405 times ]
Top

PostPosted: Sun Jun 26, 2016 8:51 am
Offline
User avatar

Joined: Tue Oct 13, 2015 3:19 am
Posts: 193
Location: Old Europe
I've finalized my setup and just packed it up for field deployment.
I got rid of the 2 low-density Ubiquity APs, as their space is now claimed by solar stuff.
One of my 3 high-density Ruckus APs will be put into tupperware and hung high up some tree, acting as a solar-powered mesh node :rofl:

The rural internet uplink is only 600kbit up and 6mbit down :damnit: , thus a lot of my focus shifted to WAN optimization techniques:
- Transport Layer Routing with Bandwidth Compression
- Hierachical Fair Service Queueing with TCP Ack Prioritization
- Web- and DNS- Caching with Filters for Ads, Autoupdates and Powerusers
Attachment:
File comment: OpenBSD Performance Enhancing Proxy
pep01-pf.conf.txt [7.59 KiB]
Downloaded 191 times


Some of these techiques are just plain silly and/or overengineered,
e.g. consider ICMP Ping behaviour enforced by pf.conf line 32:
Code:
C:\Users\karl>ping 1.2.3.4
        Pinging 1.2.3.4 with 32 bytes of data:
        Reply from 1.2.3.4: bytes=32 time=1ms TTL=254
        Reply from 1.2.3.4: bytes=32 time=1ms TTL=254
        Reply from 1.2.3.4: bytes=32 time=1ms TTL=254
        Ping statistics for 1.2.3.4:
             Packets: Sent = 3, Received = 3, Lost = 0 (0% loss),
        Approximate round trip times in milli-seconds:
             Minimum = 1ms, Maximum = 1ms, Average = 1ms

C:\Users\karl>tracert heise.de
        Tracing route to heise.de [193.99.144.80]
        over a maximum of 30 hops:
           1    56 ms    <1 ms    <1 ms  10.42.242.1
           2     2 ms    10 ms     1 ms  redirector.heise.de [193.99.144.80]
        Trace complete.


Attachments:

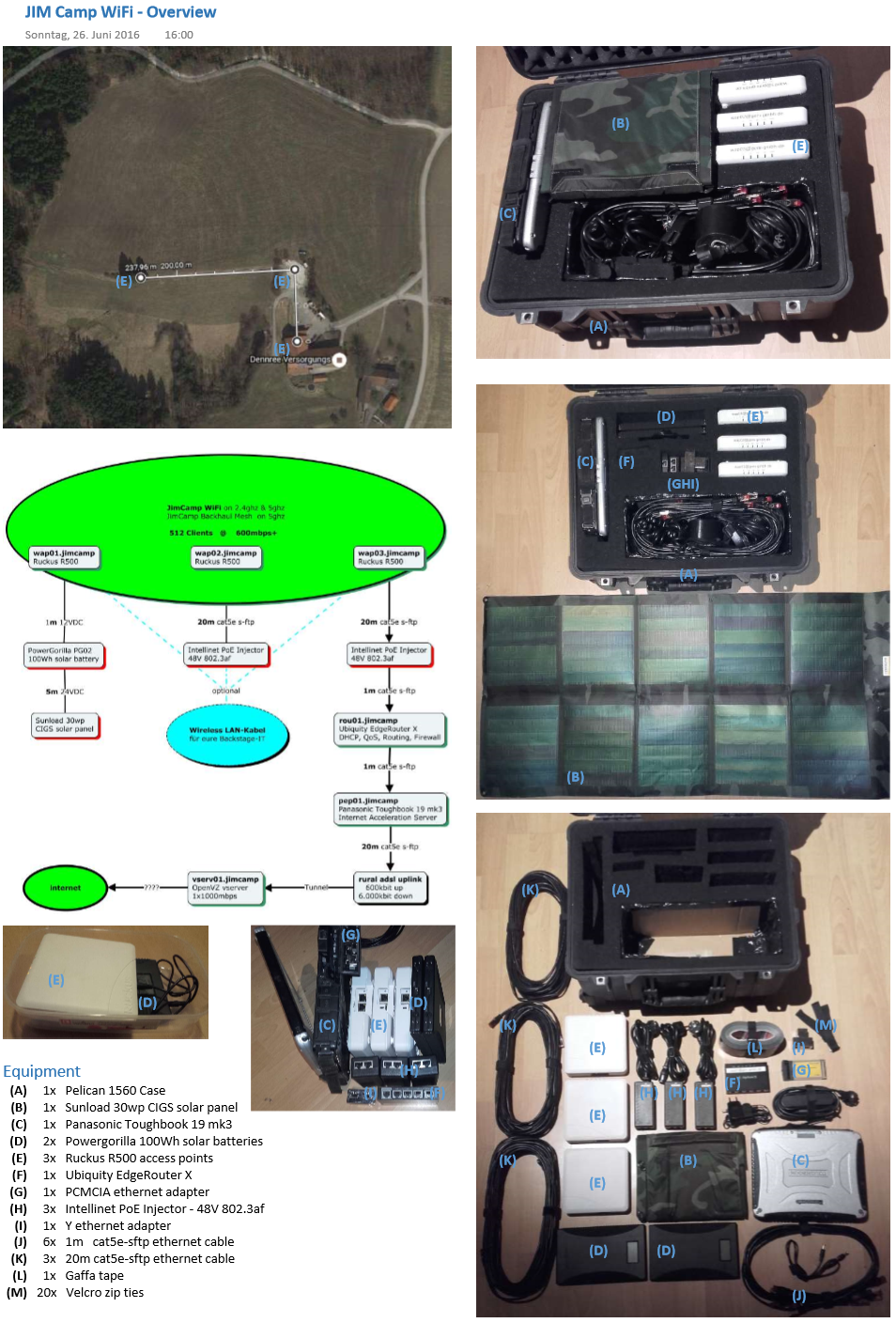

File comment: Network Topology and Equipment
JIM Camp WiFi - Overview-noLogo.png
JIM Camp WiFi - Overview-noLogo.png [ 1.24 MiB | Viewed 4244 times ]
Top

PostPosted: Sun Jul 31, 2016 5:56 am
Offline
User avatar

Joined: Tue Oct 13, 2015 3:19 am
Posts: 193
Location: Old Europe
The festival happened this weekend.

I've learned why there is no such thing as a free lunch:
People don't appreciate stuff when they don't have to pay for it.

The orga decided to pull the plug and rather use up all the bandwidth for themselves,
about 5 hours after the first visitors arrived.

Oh well ... sometimes you win, sometimes you learn.


Top

PostPosted: Sun Jul 31, 2016 7:55 am
Offline
User avatar

Joined: Fri Jan 18, 2013 11:35 am
Posts: 2971
Ugh
